GORE^® Fiber Optic Cables for Defense Aircraft

PROVEN PERFORMANCE ACROSS AIRCRAFT APPLICATIONS

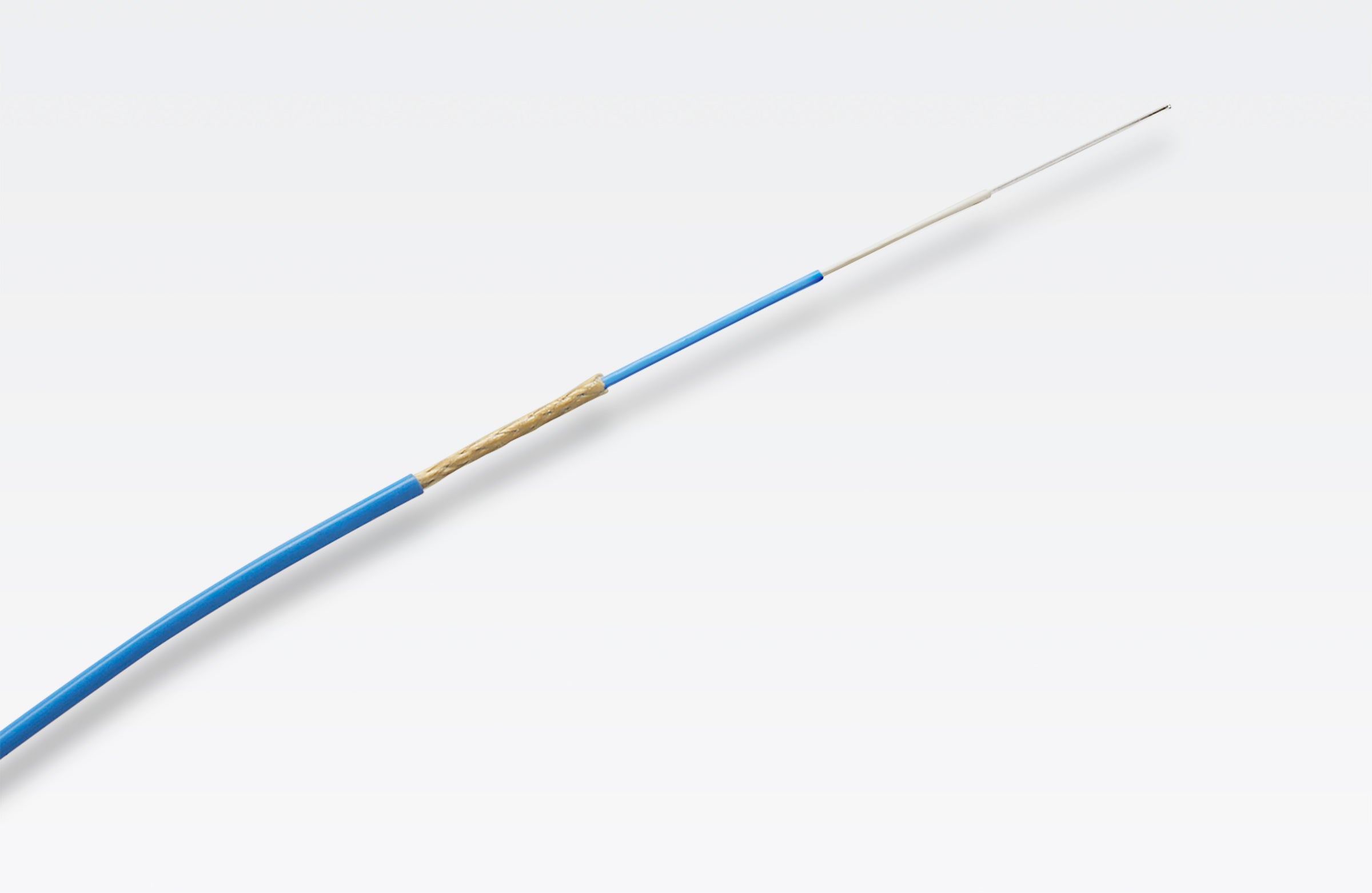

Designed to meet high-bandwidth demands for transferring long-distance data and video, GORE Fiber Optic Cables (1.2 mm Simplex) prove dependable in many airborne applications, like:

• avionics digital networks
• digital video systems
• Ethernet backbone
• flight management systems
• inside-the-box/laser pigtail
• strain-gauge systems
• transceivers

Our cables can also be terminated with a variety of leading high-speed aerospace connector systems and backshells, like ARINC, MIL-STD-38999, and MIL-PRF-29504. If you have any questions or to discuss your specific application needs, contact a Gore representative today.

These values demonstrate the optical, mechanical and environmental performance of GORE Fiber Optic Cables (1.2 mm Simplex) for defense aircraft.

We invite you to download the data sheet for more technical information and performance data.

We invite you to download our drawings to view cable materials and characteristics, like diameter sizes.

GORE Fiber Optic Cables (1.2 mm Simplex) for Defense Aircraft have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.

• ABD0031 (AITM 2.0005); BSS7230-F6; BSS7324-7.25; FAR Part 25, Appendix F, Part I: Flammability
• ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
• ABD0031 (AITM 3.0005); BSS7239: Toxicity
• MIL-STD-202, Method 103: Humidity
• MIL-STD-810, Method 509: Salt Fog
• MIL-STD-810, Method 510: Sand and Dust

Fill out a short form to get samples of our pre-qualified cables in 48 hours for prototyping and evaluation. For more information about the qualifications of our cables and complimentary samples, contact a Gore representative today.

PROVEN PERFORMANCE ACROSS AIRCRAFT APPLICATIONS

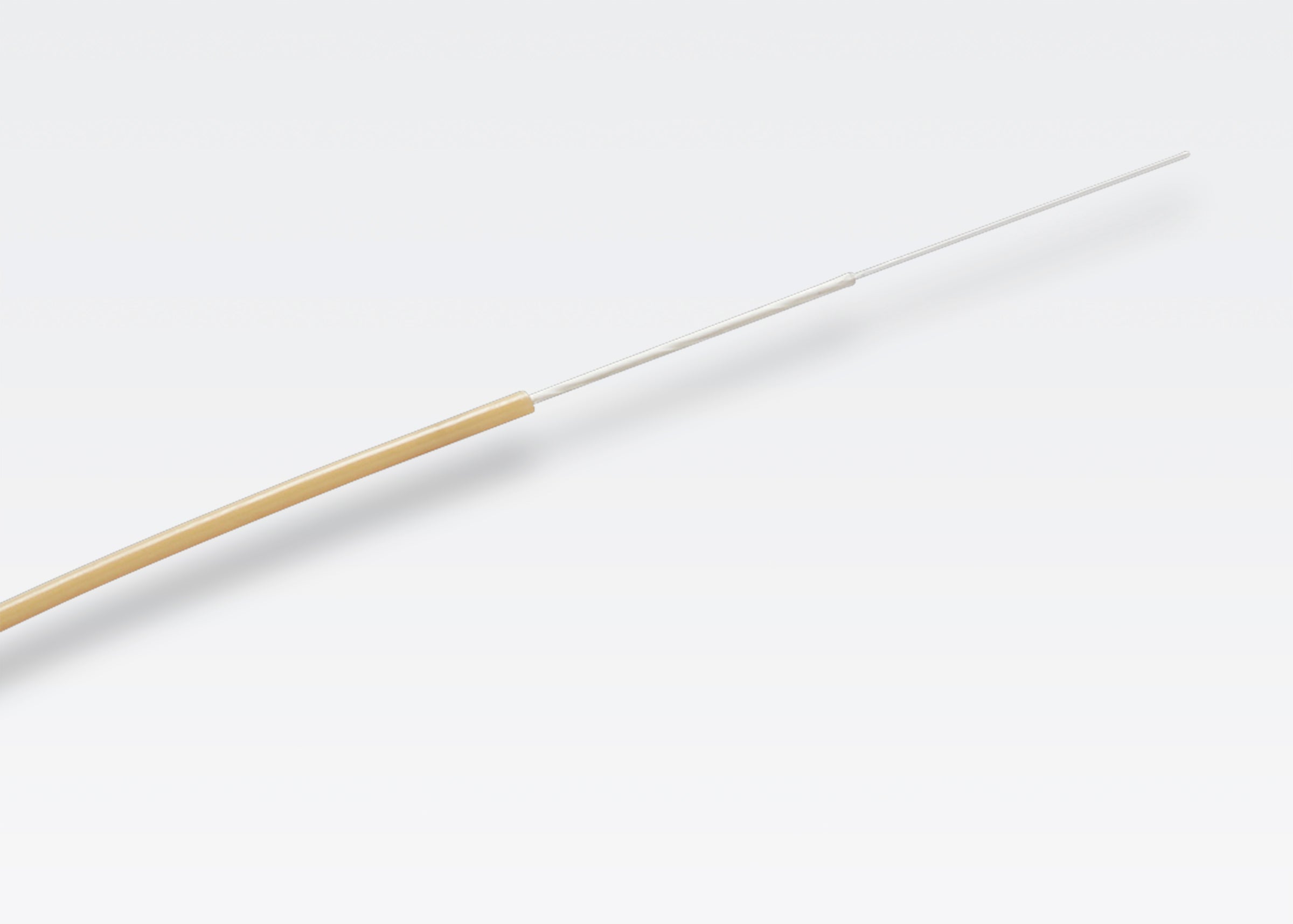

With an ideal blend of slender, light size and robust construction, GORE Fiber Optic Cables (900 micron) reliably support high-speed data transfer in several applications, like:

• inside-the-box
• outside-the-box
• transceivers

Our cables can also be terminated with a variety of leading high-speed aerospace connector systems and backshells, like ARINC, MIL-STD-38999, and MIL-PRF-2950. If you have any questions or to discuss your specific application needs, including fiber options packaged with GORE® Cable Protection Systems for outside-the-box applications, contact a Gore representative today.

These values demonstrate the optical, mechanical and environmental performance of GORE Fiber Optic Cables (900 micron) for defense aircraft.

We invite you to download the data sheet for more technical information and performance data.

We invite you to download our drawings to view cable characteristics, like diameter sizes and weight.

GORE Fiber Optic Cables (900 micron) for Defense Aircraft have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.

• ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
• ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
• ABD0031 (AITM 3.0005); BSS7239: Toxicity
• ARINC 802-3: Performance Requirements (GSC-13-85067-00)

Fill out a short form to get samples of our pre-qualified cables in 48 hours for prototyping and evaluation. For more information about the qualifications of our cables and complimentary samples, contact a Gore representative today.

PROVEN PERFORMANCE ACROSS AIRCRAFT APPLICATIONS

Each version of GORE Fiber Optic Ribbon Cables offers the right amount of ruggedness to maximize protection and performance in a variety of applications, like:

• avionics digital networks
• digital video systems
• Ethernet backbone
• Flight management systems
• Transceivers
• Weather radar systems

Our cables can also be terminated with a variety of standard high-speed aerospace MT connector systems and backshells. If you have any questions or to discuss your specific application needs, contact a Gore representative today.

These values demonstrate the optical, mechanical and environmental performance of GORE Fiber Optic Ribbon Cables for defense aircraft. Our part numbers are identified by an asterisk (*) designating the core type, followed by an asterisk designating the number of fibers (i.e., 4, 8, or 12). Also, optical values are typical.

For exact part number values and more options of our 12-core fiber optic cable, contact a Gore representative.

We invite you to download the data sheet for more technical information and performance data.

We invite you to download our drawings to view cable characteristics, like diameter sizes, minimum bend radii and attenuation values.

GORE Fiber Optic Ribbon Cables for Defense Aircraft have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.

• ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
• ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
• ABD0031 (AITM 3.0005); BSS7239: Toxicity
• MIL-STD-202, Method 103: Humidity
• MIL-STD-810, Method 509: Salt Fog
• MIL-STD-810, Method 510: Sand and Dust

Fill out a short form to get samples of our pre-qualified cables in 48 hours for prototyping and evaluation. For more information about the qualifications of our cables and complimentary samples, contact a Gore representative today.
